Heavy-Duty Steel Base Plate
Heavy-Duty Steel Base Plate
Couldn't load pickup availability
Precision Laser Cut for Accuracy, Strength and Stability
Built to perform under pressure, our laser-cut steel base plate is the ultimate foundation for structural applications, DIY fabrication, or mounting projects. Crafted from premium-grade steel, each plate is cut with industrial precision to ensure clean edges, uniform holes, and perfect symmetry every time.
🔩 Key Features:
-
Material: Durable mild steel A250 grade (350 available on request)
-
Finish: Raw steel – ready for welding, painting, or galvanizing
-
Precision Laser Cut: Clean, accurate cuts with 4 bolt holes for easy installation
-
Dimensions: fully customizable upon request (let us know if you want a different hole size from below)
-
Applications: Ideal for mounting posts, machinery bases, structural supports, fencing, pergolas, and more

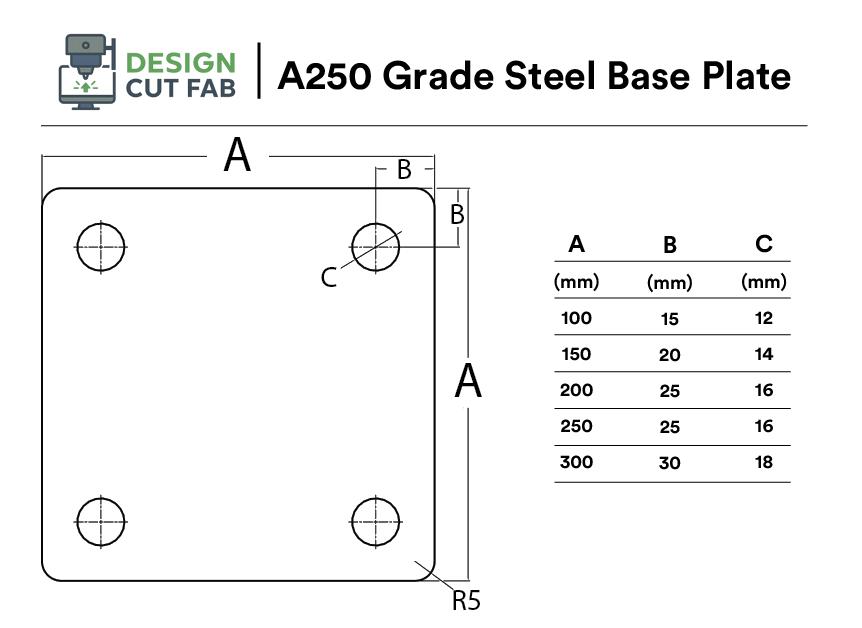

| Plate Size | Hole Center Offset (from edge) | Recommended Hole Diameter |
|---|---|---|
| 100×100 mm | 15 mm | 12 mm |
| 150×150 mm | 20 mm | 14 mm |
| 200×200 mm | 25 mm | 16 mm |
| 250×250 mm | 25 mm | 16 mm |
| 300×300 mm | 30 mm |
18 mm |
Â
Designed for builders, welders, and makers who demand reliability and accuracy, this base plate is a must-have component in any serious fabrication project.
👉 Need a custom size or hole pattern? Contact us – we cut to your specs.
