Diamond Aluminium Road Sign Blank – 1.6 mm, Radius Corners, AS Certified
Diamond Aluminium Road Sign Blank – 1.6 mm, Radius Corners, AS Certified
Couldn't load pickup availability

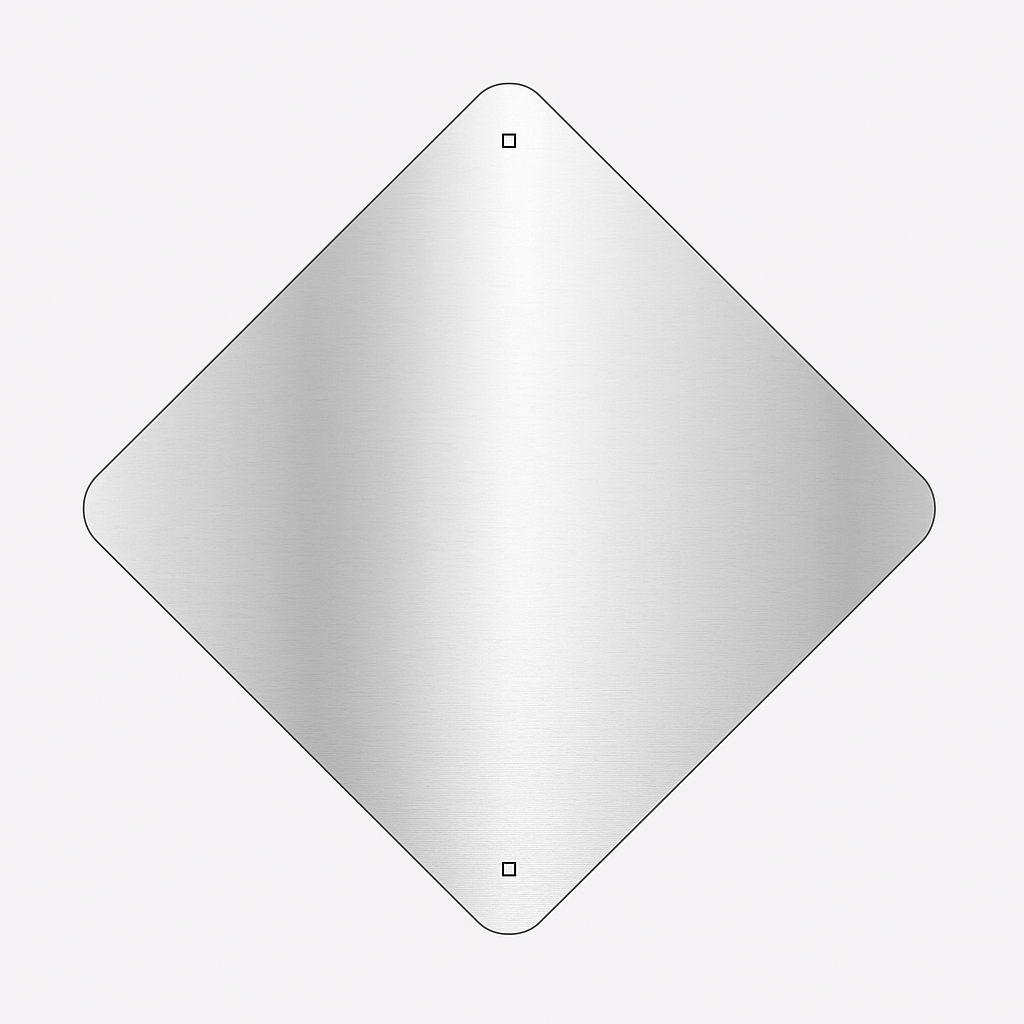

Diamond Aluminium Road Sign Blanks
Professional-quality diamond aluminium sign blanks, laser cut from 1.6 mm aluminium and supplied ready for reflective sheeting, printed graphics, vinyl application or other sign-finishing processes.
Available in four common TfNSW W2-7 dimensional profiles, with the corner radius adjusted to suit each sign size.
Product features
- Laser cut from durable 1.6 mm aluminium
- Mill-finish surface ready for sign application
- Rounded corners matched to the selected size
- Two 12 × 12 mm square mounting holes
- Mounting holes aligned on the vertical centreline
- Hole centres positioned 100 mm from the finished top and bottom extremities
- Clean, accurately cut edges
- Suitable for road, traffic, warning, property and industrial signage
Available sizes
| Nominal size | Corner radius | Approximate weight |
|---|---|---|
| 600 × 600 mm | R40 | 1.54 kg |
| 750 × 750 mm | R50 | 2.40 kg |
| 900 × 900 mm | R60 | 3.46 kg |
| 1200 × 1200 mm | R80 | 6.15 kg |

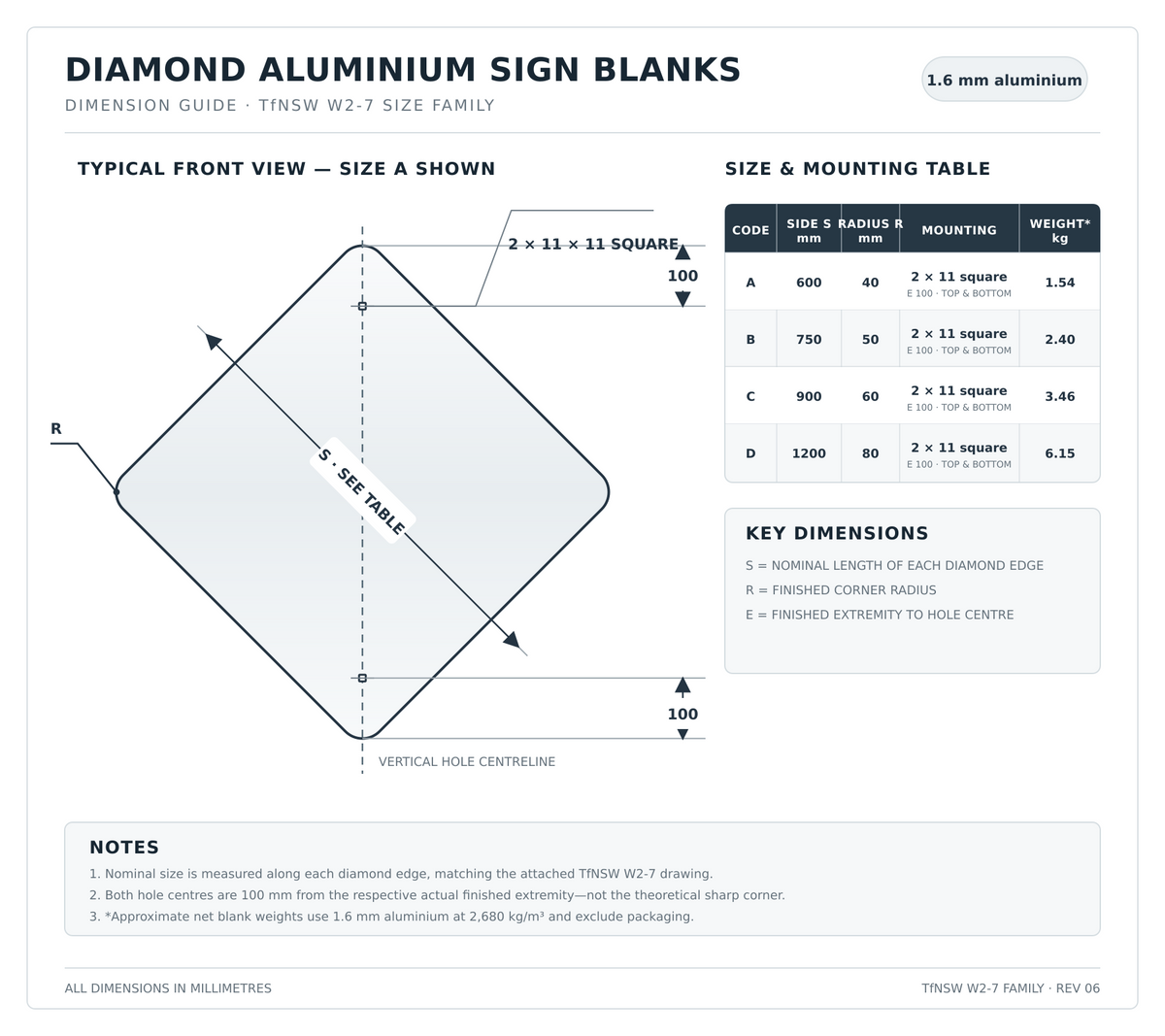

Dimension information
The nominated size is measured along each edge of the diamond, consistent with the TfNSW W2-7 dimensional format. It is not the overall point-to-point height or width.
Each blank includes two vertically aligned square mounting holes. The upper and lower hole centres are located 100 mm from their respective finished extremities.
Please note: This product is supplied as a blank aluminium panel. Reflective sheeting, printed graphics, posts, mounting rails and fixings are not included.
